Understanding Vacuum Forming: A Key Process in Plastics Manufacturing

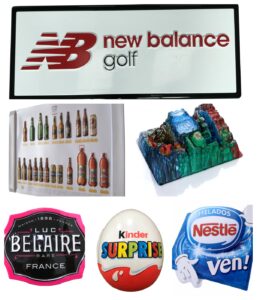

Vacuum forming is a fundamental technique in the plastics industry, enabling the production of everything from packaging solutions to automotive components. At YOUDE PLASTICS, we excel in designing custom vacuum forming¹ products that emphasize durability, precision, and efficiency. This article aims to demystify how vacuum forming¹ operates and provides a comprehensive overview of a typical vacuum forming¹ machine, highlighting its main components to help you better understand each stage of the process.

What Is Vacuum Forming?

Vacuum forming is a type of thermoforming process² where a plastic sheet is heated until it becomes soft and malleable. The softened sheet is then shaped over a mold using vacuum pressure, which pulls the plastic tightly into the mold's contours. Once cooled, the plastic solidifies, preserving the mold's geometry with high accuracy.

This process is favored across industries due to its cost-effectiveness, quick turnaround times, and ability to produce high-quality parts in both small and large production runs.

Importance of Understanding the Vacuum Forming Machine Diagram

Whether you're operating machinery, designing products, or engineering manufacturing solutions, familiarizing yourself with a vacuum forming machine diagram³pf.co.uk/plastipedia/processes/Vacuum_Forming.aspx)¹ machine diagram offers several benefits:

• Troubleshooting and resolving production issues⁴ efficiently
• Optimizing machine settings for better quality and speed
• Understanding how various parts of the machine function and interact
• Selecting the most suitable machine configuration for specific applications

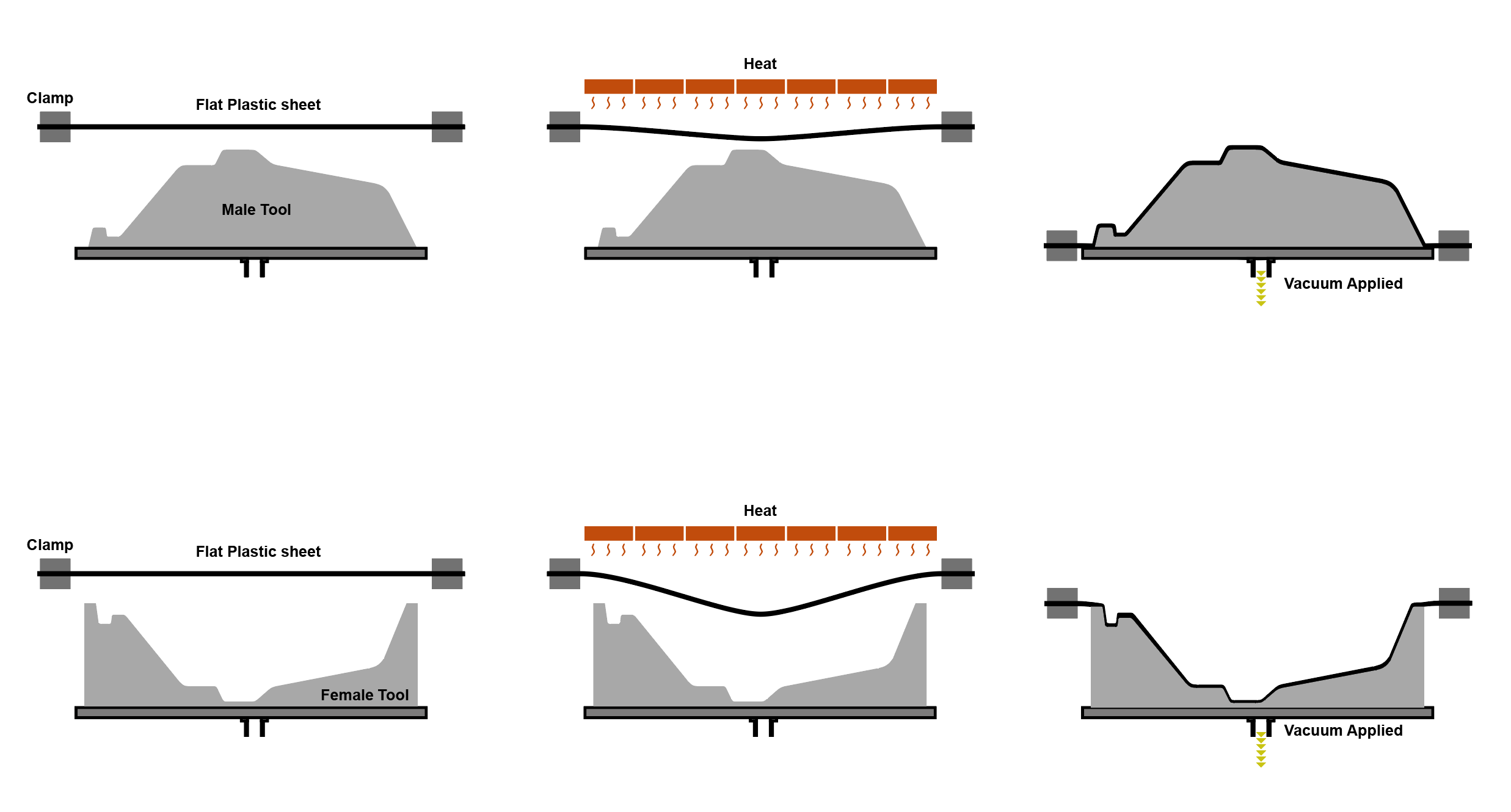

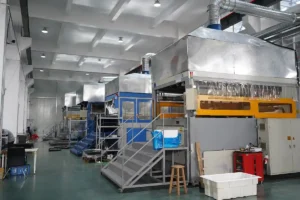

How Does Vacuum Forming Work? A Step-by-Step Explanation

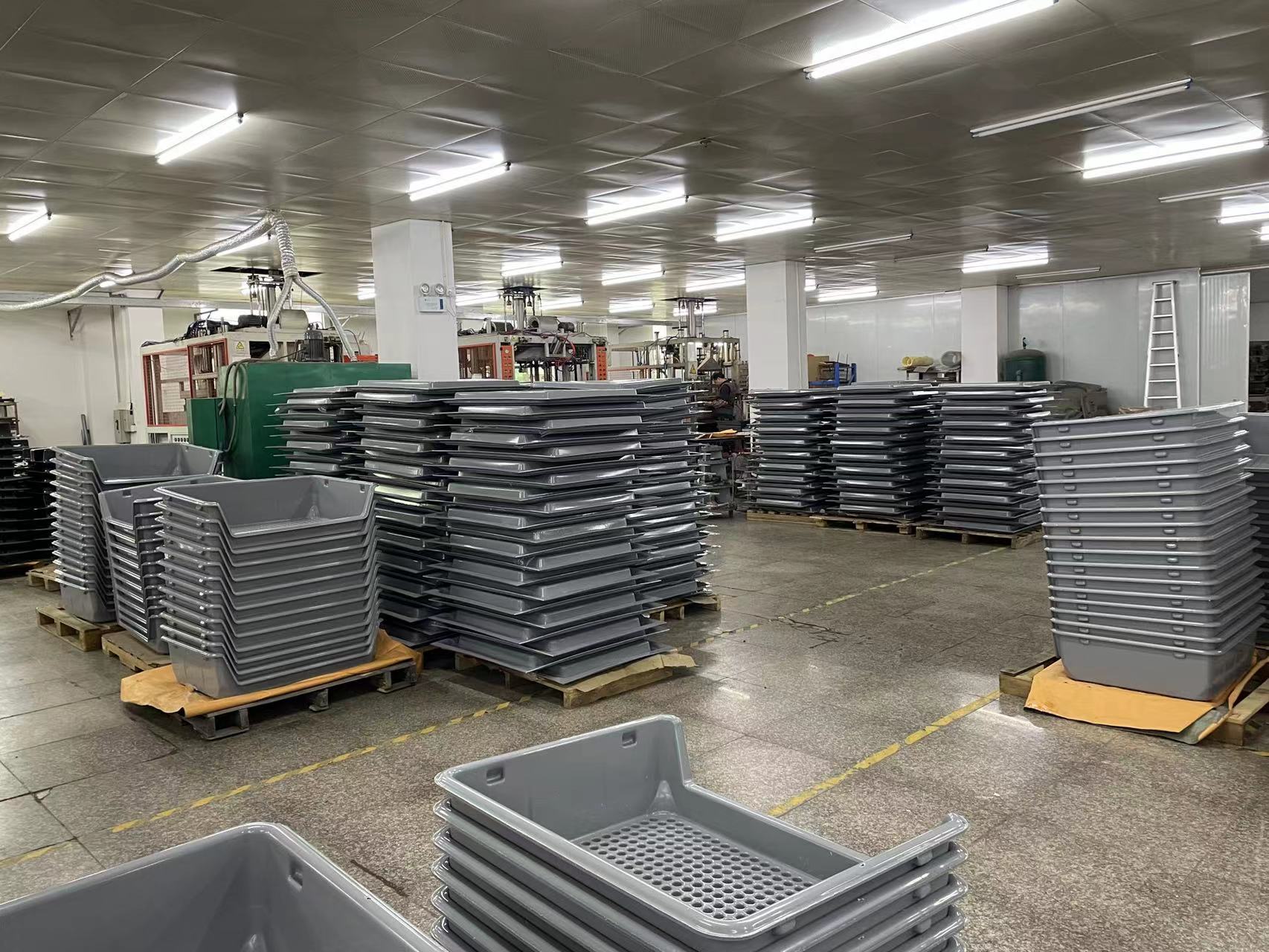

1. Clamping

The process begins with securing a sheet of plastic firmly onto the machine's platen or frame to prevent movement during subsequent steps.

2. Heating

The plastic sheet is moved under an infrared or quartz heater, where it is evenly heated until it reaches its forming temperature—soft enough to mold without melting.

3. Forming

Once heated, the sheet is lowered toward or over a mold. A vacuum pump then evacuates the air between the sheet and the mold, causing the plastic to suck tightly onto the mold's surface, capturing its detailed shape.

4. Cooling

The formed plastic is left to cool and harden while remaining on the mold to retain its shape.

5. Release and Trimming

After cooling, the formed part is carefully removed from the mold. Excess material around the edges is trimmed off to achieve the desired final dimensions.

Advantages of Vacuum Forming

• Low tooling costs⁵: The process requires minimal investment in mold fabrication, thanks to the low-pressure technique.
• Suitable for small batch production⁶: Economical and efficient for limited runs or prototypes.
• Rapid turnaround: Enables quick creation of prototypes or custom parts.
• Large part manufacturing: Capable of producing sizable components without complex machinery.
• Flexible and expandable: Easily adjustable designs and scalable production volumes.
• Recyclability: Excess plastic material can be recycled and reused, supporting sustainability.

Disadvantages to Consider

• Variability in wall thickness: The thickness of the finished part can vary, especially in complex or deep-drawn shapes.
• Limited intricacy: Finer details, undercuts, or sharply angled features may be difficult to replicate accurately.
• Additional finishing needed: Secondary trimming or finishing steps are often required to attain precise shapes.
• Potential mold imperfections: Bubbles, dirt, or surface defects on the mold can transfer onto the product, which may be problematic for transparent or light-colored parts.
• Cost considerations for large volumes: As production volume increases, unit costs may surpass those of other manufacturing methods.
• Warping risks: Thick plastic sheets might deform during the vacuum process if not properly handled.

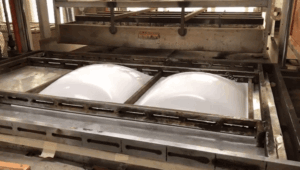

Watch the Process in Action

Conclusion

Understanding the mechanics and capabilities of vacuum forming¹ machinery is crucial for optimizing production, improving quality, and choosing the right tooling for your needs. At YOUDE PLASTICS, we are committed to delivering innovative solutions tailored to your specifications, leveraging our expertise in thermoforming technology.

The vacuum forming¹ process continues to evolve with advances in heating technology, mold materials, and automation systems. As industry demands for customization and sustainability grow, this versatile manufacturing method remains an essential tool for producing high-quality plastic components across diverse applications.

For more information about our vacuum forming¹ capabilities and custom solutions, contact YOUDE PLASTICS today.
