Distortion Printing and Vacuum Forming: How to Achieve Precise Graphics on 3D Thermoformed Products

Key Techniques for Accurate 3D Embossed Signs and Posters: Pre-Distortion and Vacuum forming

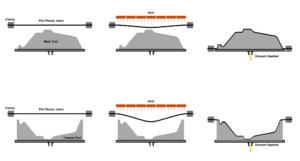

Thermoforming¹ and vacuum forming are widely used in manufacturing various plastic products, including complex 3D signs, labels, and packaging. To achieve clear and precise images on such products, pre-distortion printing² combined with pre-printed vacuum forming³ techniques are essential.

Process Overview

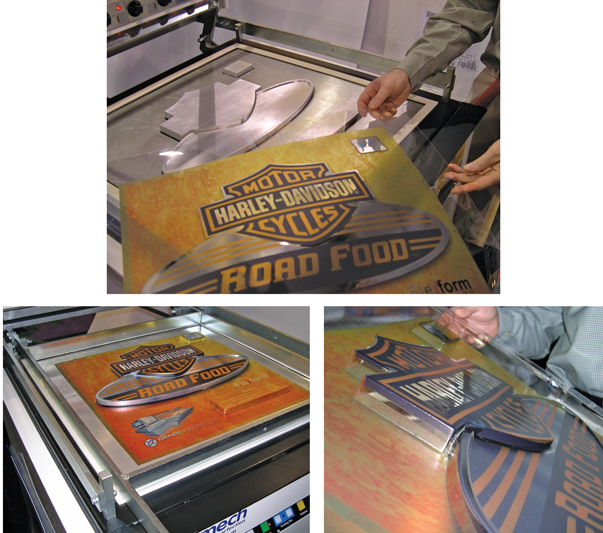

Before forming, the image is printed onto the plastic sheet. During vacuum or thermoforming, the sheet is stretched and shaped, which can distort the printed graphics. To prevent this, distortion printing² involves designing the image with pre-adjusted deformations that account for the shaping process.

Steps to Ensure Accurate Printing

• Simulate the Deformation: Use CAD or software to predict how the sheet will stretch during forming.
• Design the Distorted Image: Reverse the predicted deformation to pre-apply distortion to the print design.
• Control the Forming Process: Ensure consistent parameters to accurately reproduce the desired 3D graphics.

Successful Applications

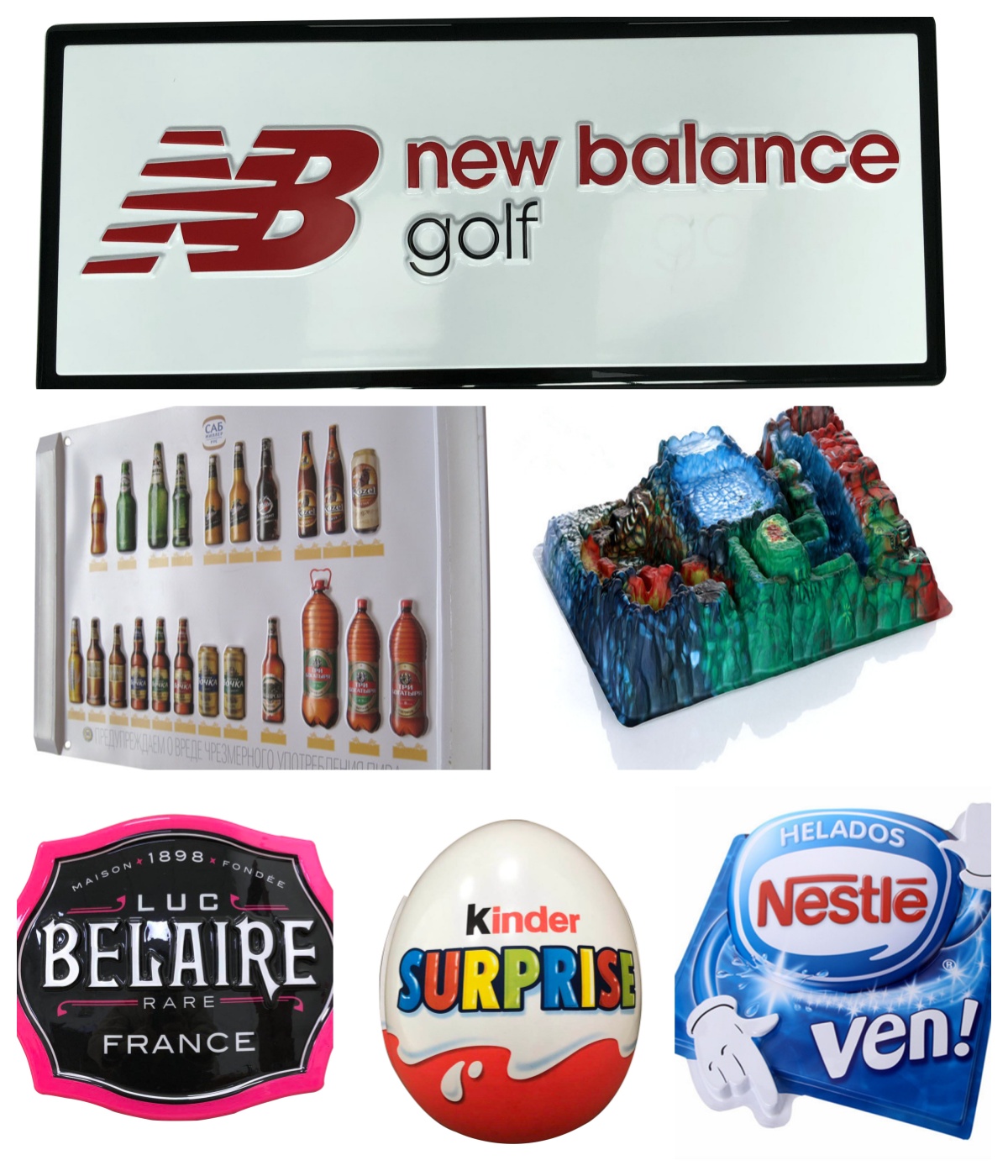

We have successfully created products where pre-printed vacuum forming and distortion printing² produce high-quality images with sharp details and vibrant colors, even on complex curved surfaces and embossed signs.

Conclusion

By combining pre-distortion printing² with controlled vacuum or thermoforming, manufacturers can produce visually stunning 3D signs, labels, and packaging with precise graphics that enhance branding and product appeal. Collaboration with experienced thermoforming/vacuum forming specialists is recommended for optimal results.

Watch the Video: Pre-Distortion Printing and Vacuum Forming Process

Click here to see the detailed process

Achieving high-quality images on complex thermoformed or vacuum-formed products hinges on intelligent pre-distortion design. This method ensures your products display crisp, accurately placed graphics, elevating their visual impact and brand value.
