CNC Trimming for Vacuum Forming
Precision post-processing technique that delivers clean edges and exact dimensions for vacuum-formed plastic parts

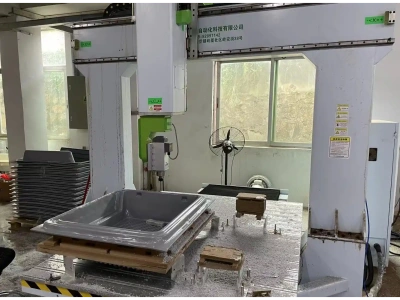

What is CNC Trimming?
CNC trimming is a critical post-processing step in vacuum forming that uses computer-controlled cutting machines to precisely remove excess material and achieve final part dimensions. This automated process ensures consistent quality and accuracy across all produced parts.
After the vacuum forming process creates the basic shape, CNC trimming refines the part by cutting away flash material, creating mounting holes, and achieving the exact specifications required for your application.
Our advanced CNC trimming capabilities include 3-axis, 5-axis, and specialized laser cutting systems to handle any complexity of vacuum-formed plastic parts.

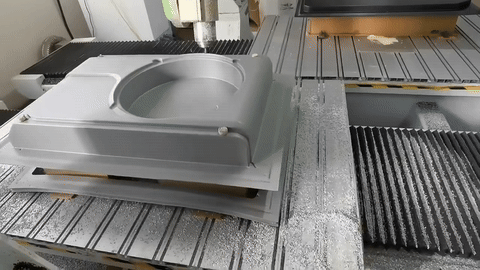

CNC Trimming Process
Our systematic approach ensures precision and quality in every trimmed part

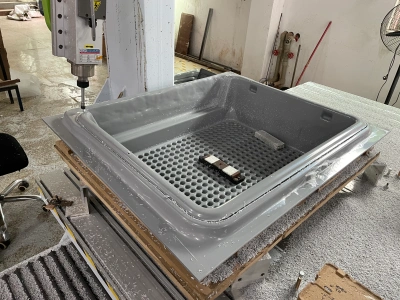

Part Fixturing
Vacuum-formed parts are securely mounted on custom fixtures with vacuum holding systems.

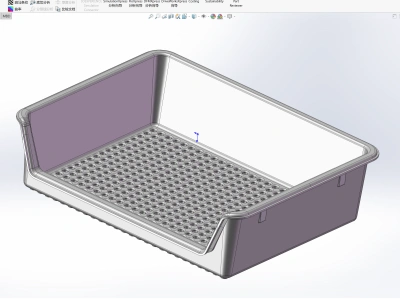

Program Setup
CAD files are converted to CNC programs with optimized tool paths and cutting parameters.
Precision Cutting
Automated cutting removes excess material and achieves final dimensions with consistent quality.
Quality Inspection
Each trimmed part undergoes thorough inspection to ensure dimensional accuracy and surface quality.
Edge Finishing
Final edge smoothing and deburring operations ensure professional appearance and safe handling.

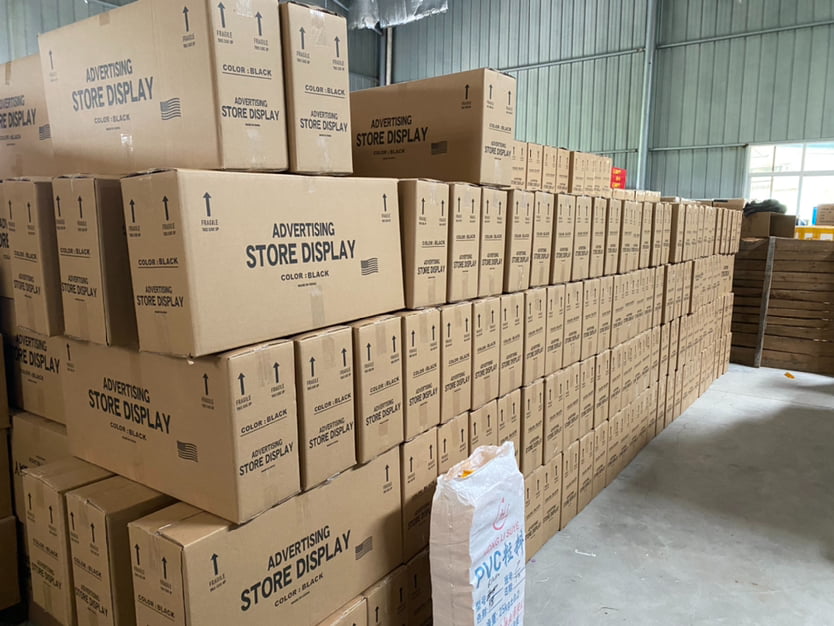

Final Packaging
Completed parts are carefully packaged with protective materials for safe shipping and delivery.
CNC Trimming Technologies
Multiple cutting technologies for different part requirements

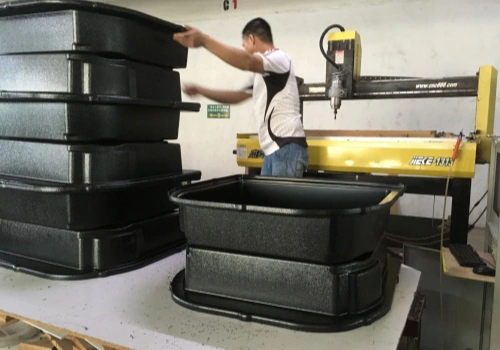

3-Axis CNC Trimming
Ideal for flat or simple curved surfaces, 3-axis CNC trimming provides reliable and cost-effective cutting for straightforward part geometries. Perfect for basic trimming operations and simple hole drilling.
- Cost-effective for simple geometries
- Fast setup and programming
- Suitable for high-volume production

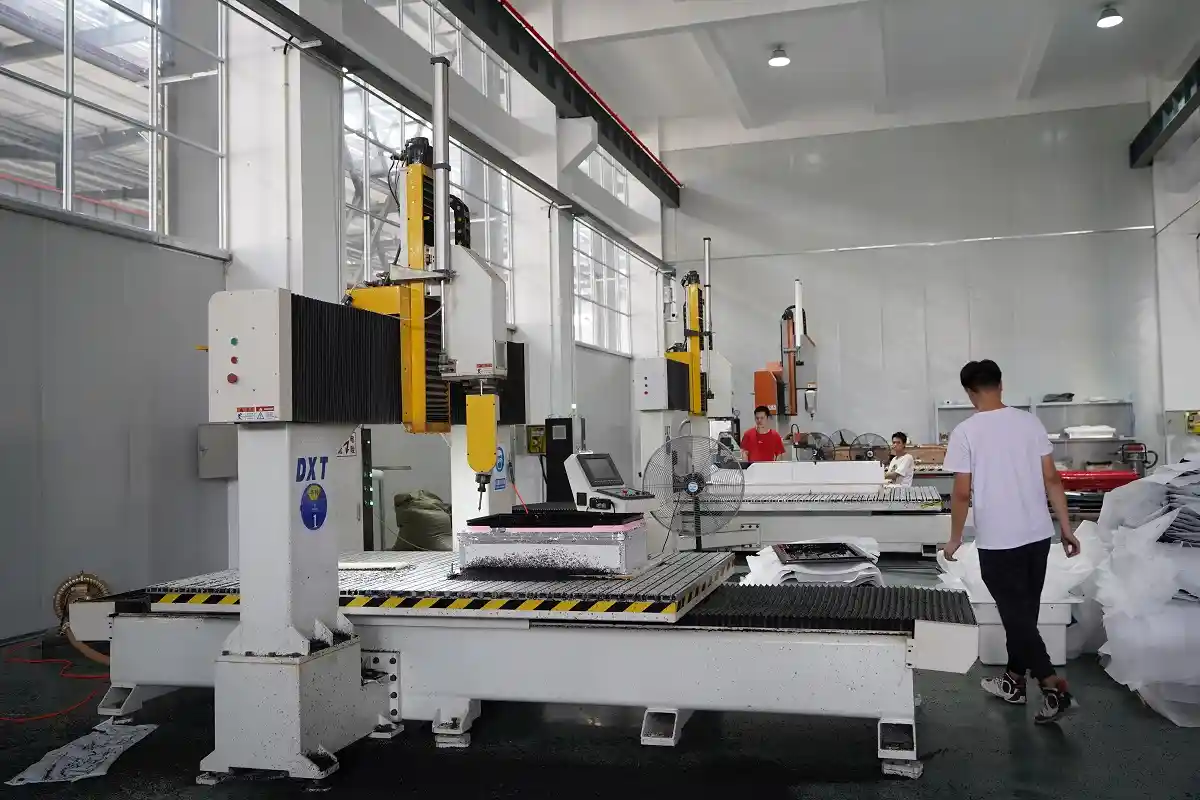

5-Axis CNC Trimming
Advanced 5-axis systems handle complex geometries and curved surfaces with precision. The additional rotational axes enable cutting at various angles without repositioning the part.
- Complex 3D geometries
- Single-setup machining
- Superior surface finish

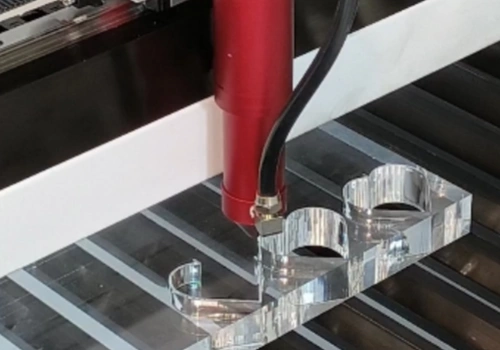

Laser Trimming
High-precision laser cutting offers clean, burr-free edges and exceptional accuracy for thin to medium thickness materials. Ideal for intricate patterns and tight tolerances.
- Burr-free cutting edges
- Intricate detail capability
- No tool wear or replacement
Advantages of CNC Trimming
Why CNC trimming is essential for high-quality vacuum forming
Precision & Accuracy
Achieves tight tolerances (±0.1mm) consistently across all parts, ensuring perfect fit and function in assemblies.
Production Speed
Automated cutting process significantly reduces cycle time compared to manual trimming methods.
Consistent Quality
Eliminates human error and variability, delivering identical results for every part in production runs.
Complex Geometries
5-axis capabilities enable trimming of complex shapes and contours that would be impossible with manual methods.
Cost Efficiency
Reduces labor costs and material waste while increasing throughput for better overall production economics.
Scalability
Easily scales from prototype to high-volume production with consistent quality and minimal setup changes.
Applications
Industries and products that benefit from CNC trimming
Automotive
Interior panels, dashboard components, trim pieces
Electronics
Equipment housings, control panels, device enclosures
Medical
Device housings, surgical trays, equipment covers
Packaging
Blister packs, clamshells, protective packaging
Technical Specifications
Capabilities and tolerances for CNC trimming operations
Machine Capabilities
Material Compatibility
Thickness Range
0.5mm to 12mm for most materials
Quality Control
Ensuring precision and consistency in every trimmed part
Dimensional Inspection
Coordinate measuring machines (CMM) verify all critical dimensions and geometric tolerances against CAD specifications.
Surface Quality
Visual and tactile inspection ensures smooth cut edges and proper surface finish according to application requirements.
Process Validation
Statistical process control monitors cutting parameters and tool condition to maintain consistent quality throughout production.
Ready to Enhance Your Vacuum Forming?
Get precision CNC trimming services that deliver exact specifications and superior quality for your vacuum-formed parts.
